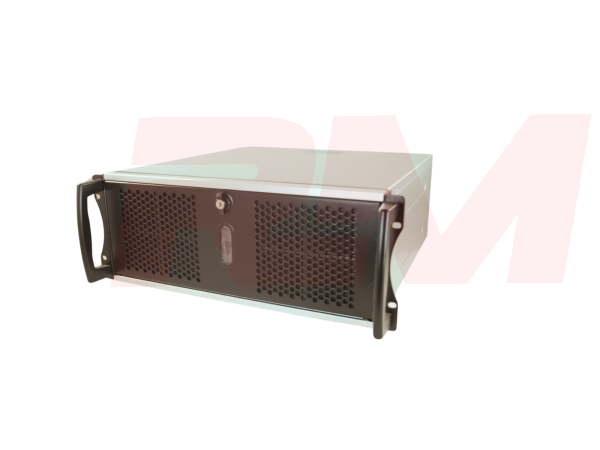

Industrial PC - 4U Sever for High Speed Data Acquisition 5xPCI 1xPCIe 16X Slots - TMS400
The TMS400 is a 4U rackmount data acquisition (DAQ) computer supports 7 full height PCI/PCIe expansion slots. It powered by Intel® 10th Generation processors, engineered for high-volume data acquisition through diverse interfaces, including multiple serial communication ports (RS232/RS422), USB ports, Ethernet ports, and GPIB ports. Designed for seamless real-time data collection, processing, and storage from various sources, the TMS400 is ideal for complex data-driven environments.
Applications:
-
Industrial Monitoring: Monitors equipment performance, detects potential failures, and enhances operational efficiency.
-
Scientific Research: Gathers data from experiments that require precise timing and substantial data storage capacity.
-
Environmental Monitoring: Tracks critical environmental parameters such as air quality, water levels, and weather conditions.
Key Features:
- 7 full height PCIe/PCI expansion slots in a 4U rack-mount form factor
- Supports versatile I/O expansion with PCI Express, 32-bit PCI interface, RS232/RS422/RS485, USB 2.0, USB 3.5, 8-bit GPIO interface, and more
- Intel 10th Gen Core processing with hybrid architecture for efficiency
- Rugged, industrial-grade design for demanding environments
- 2 x RS232/RS422 Communiation Ports (Optional 4 x RS232 Ports)
- 8 bit GPIO Header (Programmable via C) for control applications
- 5 x 32-bit PCI Slots (Full Height)
- 1 x PCIe 3.0 x16 Slot (Full - Height)
- 1 x PCIe 3.0 x 1 Slot (Full - Height)
- 4 x USB 3.2 Ports and 5 x USB 2.0 Ports
- 1 x 2.5GbE LAN Port and 1 x 1GbE LAN Port
- Supports Intel TPM 2.0
| Product Name | Industrial PC - 4U Sever for High Speed Data Acquisition 5xPCI 1xPCIe 16X Slots - TMS400 |
|---|---|
| SKU | TMS400-B1 |
| Weight | 25.000000 |
| Country of Manufacture | Canada |
| Standard Warranty | 2 Years |
| Short Description | The TMS400 is a 4U rackmount data acquisition (DAQ) computer supports 7 full height PCI/PCIe expansion slots. It powered by Intel® 10th Generation processors, engineered for high-volume data acquisition through diverse interfaces, including multiple serial communication ports (RS232/RS422), USB ports, Ethernet ports, and GPIB ports. Designed for seamless real-time data collection, processing, and storage from various sources, the TMS400 is ideal for complex data-driven environments. Applications:
System Configuration |
| Product Line | RServer |
| Cooling Type | Active Cooling Fan |
| Processor | Intel Core i3 to i9 13th Gen |
| Processor Speed | Up to 4.1 GHz (Processor Dependent) |
| Processor Socket | FCLGA1200 |
| Processor Generation | Comet Lake (10th Gen) |
| Processor Cores | Up to 24 (processor dependent) |
| Chipset | H410 |
| Graphics GPU | Intel UHD Graphics Intel® UHD Graphics 630 Up to Intel® UHD Graphics 630 (processor dependent) |
| Memory Type | DDR4 UDIMM (non-ECC or ECC) |
| Memory Capacity | 64 GB |
| Memory Speed | 2933 MHz |
| Memory Slot Count | 2 |
| Number of Displays Supported | 3 |
| Rear I/O | 1x 1GbE LAN Intel® i219-LM 1x 2.5GbE LAN Intel® I225-LM 4x USB 3.2 Gen 1 Type-A 2x USB 2.0 Type A 1x HDMI 1x VGA 2x DB9 (COM RS232/RS422) 1x PS2 1x Audio Port (3 Jacks) |
| Front I/O | 2x USB 3.2 Gen 1 Type A 1x Power Button / LED (Green) 1x Reset Button |
| Expansion Options | 7x Full Height PCI/PCIe Expansion Slots 1x M.2 2280/2260/2242/2230 M-key (PCIe Gen 3 x4) 1x PCIe Gen 3 x16 Full Height (up to 150W) 1x PCIe GEN 3 x4 Full Heigh |
| Storage Options | Up to 4x 2.5” NVMe Storage Modul Up to 4x 2.5” SATA |
| LAN Controller | 1x Intel i219-LM Controllers (1x 1GbE ports) 1x Intel i225-LM Controller (1 x 2.5GbE ports) |
| Internal Power Supply | 100~240 VAC input / 850W max output |
| Input Voltage | 100 ~ 240 VAC |
| Operating Humidity | 8 ~ 85% Relative, non-condensing |
| Operating Temperature Range | 5° ~ 40°C (ASHRAE A3 Operating Temperature) |
| Shipping Box Dimensions | 430 x 43.5 x 515mm (16.9 x 1.7 x 19.7”) without Security Bezel |
| Dimensions (WxHxD) | 430 x 43.5 x 515mm (16.9 x 1.7 x 19.7”) without Security Bezel 483 x 43.5 x 534mm (19.0 x 1.7 x 21.0”) with Security Bezel |
| Chassis Type | Steel |
| Chassis Material | Steel |
| Regulatory Compliance | CE CB scheme FCC 47 CFR Part 15 (Class A) |
| Expected Life Cycle | 7 Years |
| Application Type | Data Acquisition Server |
