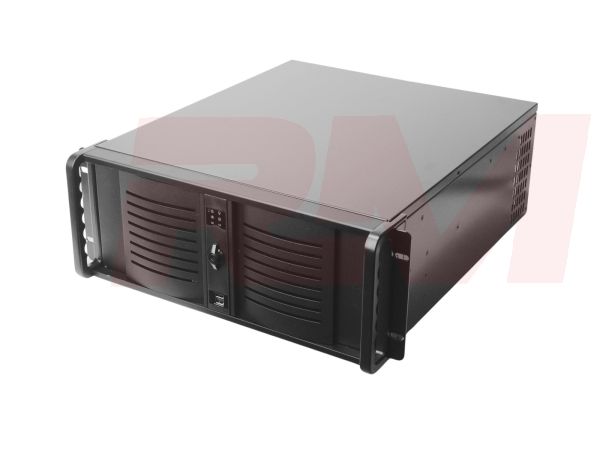

Industrial Computer - ES410 4U Rackmount PC
The ES410 is a high-performance 4U industrial rackmount server built to meet the rigorous demands of modern industrial and enterprise environments. Equipped with the latest Intel® 13th Generation processors, it delivers exceptional computational power and efficiency. Designed to optimize data repatriation, the ES410 enhances response times, reduces bandwidth usage, and lowers cloud-related costs while bolstering the security of mission-critical data. This makes it the perfect choice for organizations seeking reliable, cost-effective, and secure server solutions.
System Configuration
| Product Name | Industrial Computer - ES410 4U Rackmount PC |
|---|---|
| SKU | ES410-B1-1 |
| Weight | 25.000000 |
| Country of Manufacture | Canada |
| Standard Warranty | 2 Year |
| Short Description | The ES410 is a high-performance 4U industrial rackmount server built to meet the rigorous demands of modern industrial and enterprise environments. Equipped with the latest Intel® 13th Generation processors, it delivers exceptional computational power and efficiency. Designed to optimize data repatriation, the ES410 enhances response times, reduces bandwidth usage, and lowers cloud-related costs while bolstering the security of mission-critical data. This makes it the perfect choice for organizations seeking reliable, cost-effective, and secure server solutions. System Configuration |
| Product Line | RuggedMicro |
| Cooling Type | Active Cooling Fan |
| Processor | Intel Core i3 to i9 13th Gen |
| Processor Speed | Up to 5.2 GHz (Processor Dependent) |
| Processor Socket | FCLGA1700 |
| Processor Generation | Raptor Lake (13th Gen) |
| Processor Cores | Up to 24 (processor dependent) |
| Chipset | Intel Q670E |
| Graphics GPU | Intel UHD Graphics Intel® UHD Graphics 770 Up to Intel® UHD Graphics 770 (processor dependent) |
| Memory Type | DDR5 UDIMM (non-ECC or ECC) |
| Memory Capacity | 128 GB |
| Memory Speed | 4800 MHz |
| Memory Slot Count | 4 |
| Number of Displays Supported | 3 |
| Rear I/O | 2x 1GbE LAN Intel® i225-V 2.5GbE 1x 1GbE LAN Intel® I225-LM 2.5GbE (iAMT) 6x USB 3.2 Gen 1 Type-A 1x DisplayPort 1x HDMI 1x VGA 2x DB9 (COM) 1x ID button / LED (Blue) |
| Front I/O | 2x USB 3.2 Gen 1 Type A 1x Power Button / LED (White) 1x ID button / LED (Blue) |
| Expansion Options | 1x M.2 2280/2260/2242/2230 M-key (PCIe Gen 4 x4) 1x PCIe Gen 4 x16 Full Height; Full Length slot (up to 150W) |
| Storage Options | Up to 4x 2.5” NVMe Up to 4x 2.5” SATA |
| LAN Controller | 2x 1GbE LAN Intel® i225-V 2.5GbE 1x 1GbE LAN Intel® I225-LM 2.5GbE (iAMT) |
| Internal Power Supply | 100~240 VAC input 450W Gold 750W Platinum |
| Input Voltage | 100 ~ 240 VAC |
| Operating Humidity | 8 ~ 85% Relative, non-condensing |
| Operating Temperature Range | 5° ~ 40°C (ASHRAE A3 Operating Temperature) |
| Shipping Box Dimensions | 430 x 43.5 x 515mm (16.9 x 1.7 x 19.7”) without Security Bezel |
| Dimensions (WxHxD) | 430 x 43.5 x 515mm (16.9 x 1.7 x 19.7”) without Security Bezel 483 x 43.5 x 534mm (19.0 x 1.7 x 21.0”) with Security Bezel |
| Chassis Type | Steel |
| Chassis Material | Steel |
| Regulatory Compliance | CE FCC 47 CFR Part 15 (Class A) |
| Expected Life Cycle | 7 Years |
| Application Type | Rugged Industrial Computer Server |
